Good home security camera installation starts with a coverage plan. Before drilling holes or pairing an app, identify the routes a person would use to approach, enter, or leave your property, then choose camera positions that capture faces, movement, and vehicle activity without creating major blind spots. The best mounting location is rarely the most convenient outlet or the easiest piece of siding to reach. Power supply, Wi-Fi strength, night lighting, weather exposure, and privacy boundaries all affect whether a camera delivers usable footage when an incident occurs.
Walk around the outside of the home in daylight and again after dark. Mark each exterior door, ground-level window that is hidden from the street, garage door, gate, driveway, and path leading to the back or side yard. Then consider normal activity: where family members arrive, where deliveries are left, where bins are stored, and where headlights or streetlights may trigger motion alerts.
Think in terms of routes rather than camera count. A single well-positioned camera may cover a front walk and entry door, while a second camera aimed down a side passage can cover an otherwise unseen route to the rear of the house. By contrast, several cameras pointed broadly across a yard may produce plenty of clips but little identifiable evidence.
Use a printed satellite image, property sketch, or even a hand-drawn outline. Add the house, garage, entrances, driveways, fences, and trees. Mark likely approach paths with arrows. For every proposed camera, draw its approximate field of view and note potential obstructions such as eaves, shrubs, parked vehicles, or a gate that swings into frame.
This exercise reveals overlap and gaps before installation. Some overlap is useful at key entries because it can preserve a view if one camera is blocked, damaged, loses connection, or faces into bright sunlight at a certain time of day. Too much overlap, however, can mean you have missed a more vulnerable area.
Different positions call for different views. A video doorbell is intended to document activity at the front door; it is not automatically a substitute for a camera that sees a visitor approaching from the driveway or walking away. Similarly, a camera over a garage may record the garage door clearly but fail to show a person entering through a side service door.
| Area to cover | Main objective | Positioning approach | Common limitation to avoid |
|---|---|---|---|
| Front door | Capture visitors, deliveries, and package area activity | Use a video doorbell or a camera angled toward the doorway and approach path | Mounting too high, which records heads and hats rather than faces |
| Driveway | See arriving vehicles and people moving toward the home | Mount under an eave or on a garage corner with a view along the drive | Aiming straight at headlights or across a busy street |
| Garage and side door | Protect a secondary entry | Cover the door and the route leading to it from an offset angle | Relying only on a camera above the main garage door |
| Rear door or patio | Monitor private access and outdoor storage | Mount where the door, patio threshold, and approach route are visible | Letting patio furniture, foliage, or reflections obstruct the view |
| Side passage or gate | Detect an approach that is hidden from the street | Use a narrower, route-focused view down the passage | Pointing the lens directly at a neighbour’s windows or yard |
For identification, aim for a closer, purposeful view at points where people naturally pass. Wide-angle coverage has value for awareness, but it often makes faces and details smaller. A practical setup commonly combines an overview camera for context with a nearer angle at the primary entry or approach route.

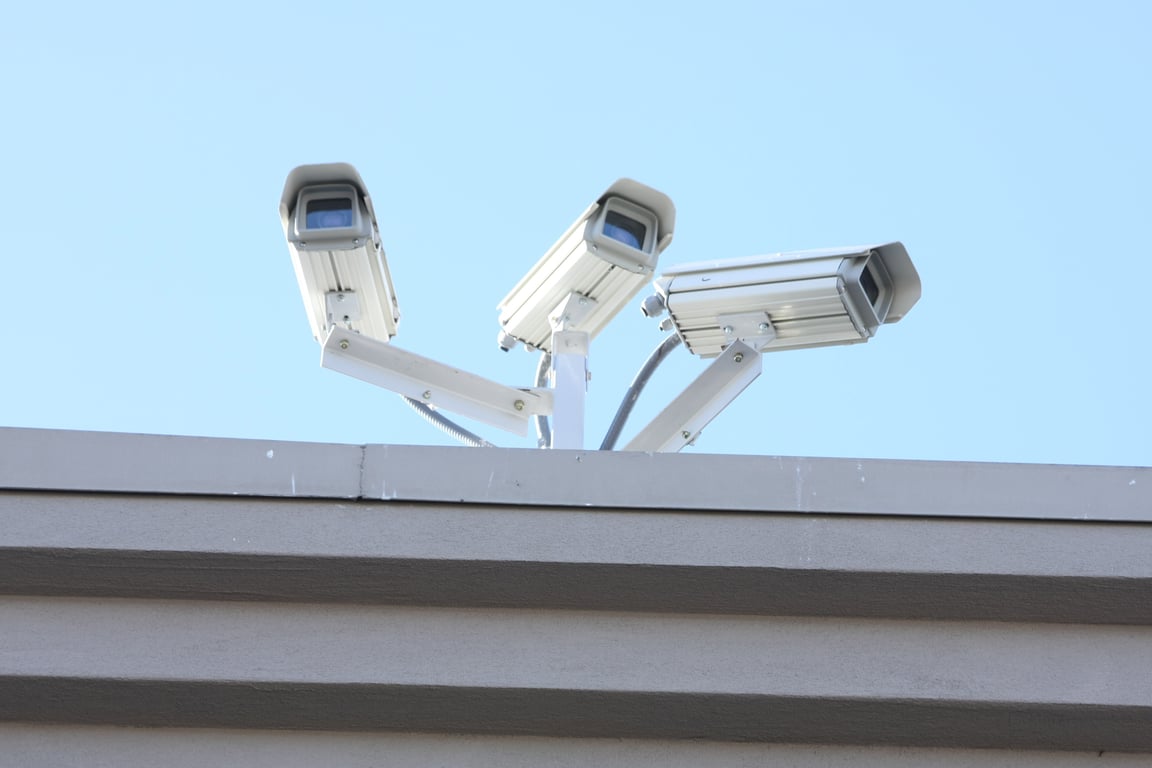

Mounting cameras high under eaves can make them harder to reach and may widen the view, but excessive height reduces facial detail. A lower installation can improve identification but increases the risk of tampering. The sensible compromise depends on the camera lens, the distance to the subject, and the structure of the home.
Before fixing the bracket, hold the camera at the proposed position or use its app with a temporary mount. Check how a person’s face appears at the distance where they will walk, stand, or knock. Tilt the camera only as much as needed. A view dominated by sky, roofline, or pavement wastes useful image area.
Power decisions shape the reliability and maintenance needs of home security camera installation. Battery cameras are flexible, wired cameras can provide steady power, and solar accessories may reduce charging work where sunlight is dependable. The right choice depends on the location and your willingness to perform periodic maintenance.
| Power option | Best for | Main advantage | Main limitation | Check before choosing |
|---|---|---|---|---|
| Battery-powered | Locations without accessible wiring or rented homes where permanent changes are limited | Flexible placement and simpler mounting | Needs recharging or battery replacement; frequent activity can shorten runtime | Safe access for removing and charging the camera |
| Plug-in power | Outdoor or indoor locations near a suitable outlet | Continuous power without regular battery charging | Cable routing may be visible or vulnerable if poorly protected | Weather-rated cable routing and outlet suitability |
| Hardwired or Power over Ethernet | Long-term installations, larger homes, or areas with weak Wi-Fi | Reliable power; Ethernet can improve network stability | More complex installation and may require professional help | Safe cable paths, equipment compatibility, and local electrical requirements |
| Solar-assisted battery power | Sunny positions with moderate motion activity | Can reduce manual charging | Performance depends on panel exposure and seasonal conditions | Whether the panel receives direct, unobstructed light |
Do not run a power cable through a door or window simply because it is quick. Pinched cords can damage insulation, prevent proper closing, and create a poor weather seal. Outdoor cable runs should be appropriate for the environment, secured neatly, and routed to reduce snagging and tampering. If the work involves mains wiring, uncertain wall cavities, or a new outdoor circuit, use a qualified electrician rather than treating it as a basic DIY task.
A camera can appear reliable while sitting beside your router and struggle once it is mounted behind brick, stucco, metal cladding, or several walls. Test the actual location before final installation. Connect the camera temporarily, view the live feed, trigger motion, and review how quickly an alert and recorded clip arrive on your phone.
If coverage is weak, moving the camera a short distance can help, but do not assume a range extender will solve every problem. Mesh Wi-Fi, a properly placed access point, or an Ethernet-connected camera may be more suitable for a detached garage, a distant gate, or the far side of a large property. Avoid placing Wi-Fi equipment outdoors unless it is designed and installed for that setting.
Camera systems may store video locally, in a cloud service, or both. Local storage can continue to be useful without an ongoing cloud plan, depending on the product and configuration, but the recording device should be protected from theft and failure. Cloud recording can make remote review easier, yet available history, video quality, and features may depend on the plan you choose.
Test alerts during normal household activity. A driveway camera that notifies you every time a neighbour passes, a branch moves, or a car drives by will soon be ignored. Tighten the motion zone, adjust sensitivity, or reposition the camera so it watches your property rather than public traffic.
Night vision is affected as much by the scene as by the camera. Infrared illumination can reflect off nearby walls, window glass, gutters, soffits, or a camera mounted too close to a surface. The result may be a washed-out image where the foreground is bright and the person farther away is difficult to see.
After dark, review a live view from every proposed location. Check for porch lights shining directly into the lens, vehicle headlights entering the frame, and reflective objects close to the camera. Shift the angle or position slightly before committing to the mount. A camera placed behind a window is usually a poor solution for night surveillance because infrared light commonly reflects from the glass.
Camera coverage should be focused on your home, entrances, and property boundaries. Positioning a lens toward a neighbour’s windows, enclosed yard, or other private space can create legitimate privacy concerns even if that area happens to be visible from your property. Use privacy zones or masking features where available, and aim the camera away from areas that do not need to be recorded.
Audio recording rules vary by location and can be more restrictive than video recording rules. If your camera includes a microphone, check the rules that apply where you live before enabling audio, particularly in shared housing, multi-unit buildings, or areas where visitors and service providers may be recorded. Tenants, condominium owners, and homeowners’ association residents should also check applicable lease, building, or community restrictions before mounting exterior equipment.
Keep account security in the plan as well. Use a unique password, enable multi-factor authentication if offered, keep camera firmware and the router updated, and remove access for former household members, contractors, or unused devices. A camera is part of your home network, not a standalone appliance.
DIY installation suits many battery and plug-in cameras, especially where the mounting point is reachable and the Wi-Fi signal is strong. Professional installation is worth considering for hardwired cameras, Power over Ethernet systems, multi-camera layouts, difficult exterior materials, high mounting positions, and projects requiring new electrical work or concealed cabling.
A professional is also useful when you want a recorder, network equipment, cameras, alarms, locks, and monitoring services to work as one system. Before hiring anyone, ask what is included: camera mounting, cable routing, network setup, app configuration, storage configuration, cleanup, and support after installation. Confirm who owns the equipment and who controls the administrator account.
The number depends on the property layout and the routes you need to cover, not on a fixed formula. Many homes begin with the front door, driveway or garage area, and rear entry, then add coverage for a side gate or another vulnerable route if the first cameras leave a gap.
Mount them where they can see an entry point or approach route while remaining reasonably protected from tampering and weather. Under eaves, on garage corners, and near exterior doors can work well, provided the camera has a clear view and is not so high that it loses facial detail.
It may provide a daytime view, but it is usually unreliable at night because infrared light reflects off glass. Window glare, reflections, and reduced motion detection can also affect results. An outdoor-rated camera mounted outside is generally more effective for exterior coverage.
Many consumer wireless cameras use Wi-Fi for live viewing, notifications, and cloud recording. Some systems can record locally, but their remote features may be limited when the internet is unavailable. Test signal quality at the mounting point rather than relying on indoor Wi-Fi performance.
A small amount of street view may be necessary to capture a driveway entrance or approaching vehicles, but the camera should primarily cover your property. Aiming too broadly at public traffic can create excessive alerts, consume storage, and raise privacy concerns.
Check camera views periodically and after severe weather, landscaping work, or changes around the property. Clean the lens gently as directed by the manufacturer, confirm that recordings and alerts still work, review battery levels where relevant, and keep the camera app and firmware current.
The most effective home security camera installation focuses on the paths that matter: people approaching doors, vehicles entering the driveway, and less visible routes around the property. Test every proposed camera position for framing, power, Wi-Fi, night performance, and privacy before making it permanent. A small, well-planned setup that produces clear, relevant recordings is more useful than a larger collection of cameras installed wherever mounting happens to be easy.
